Home > Road Disc > 9Velo 2025 Road Disc Carbon Spoke CD Wide Series 20H/20H (24mm inner wide)

1/1

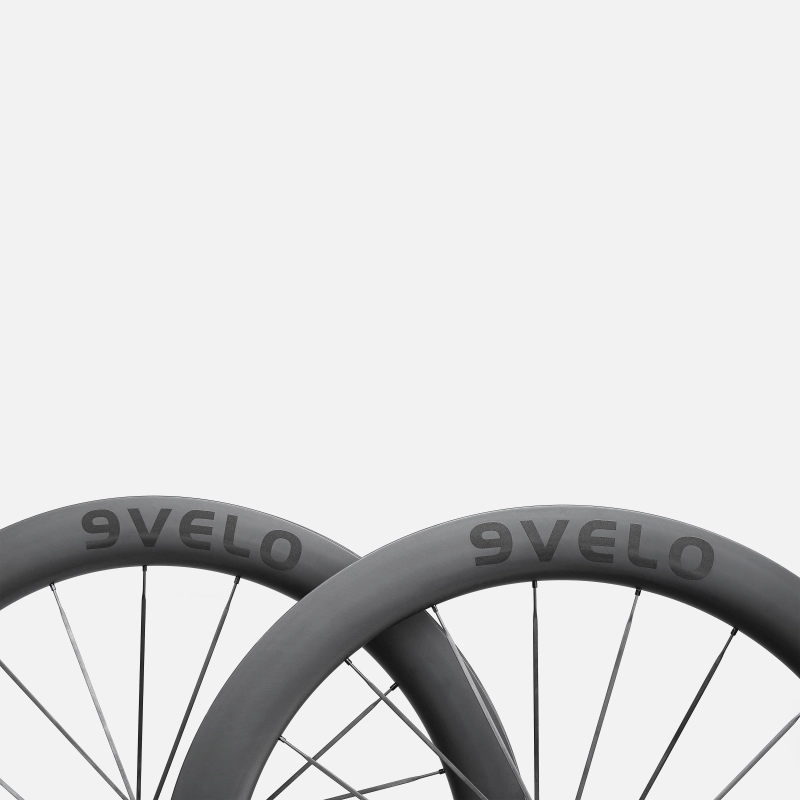

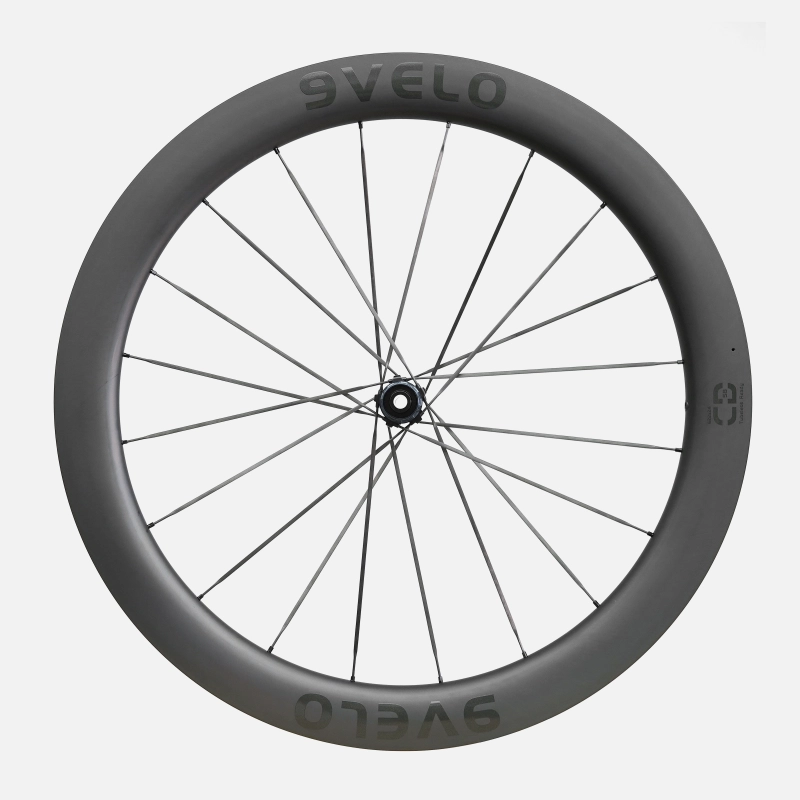

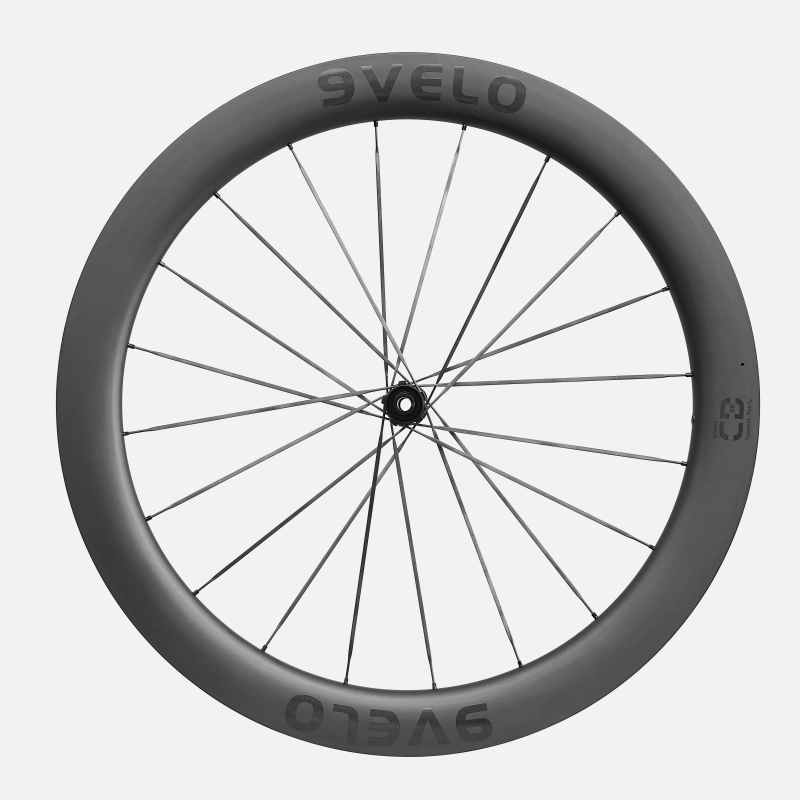

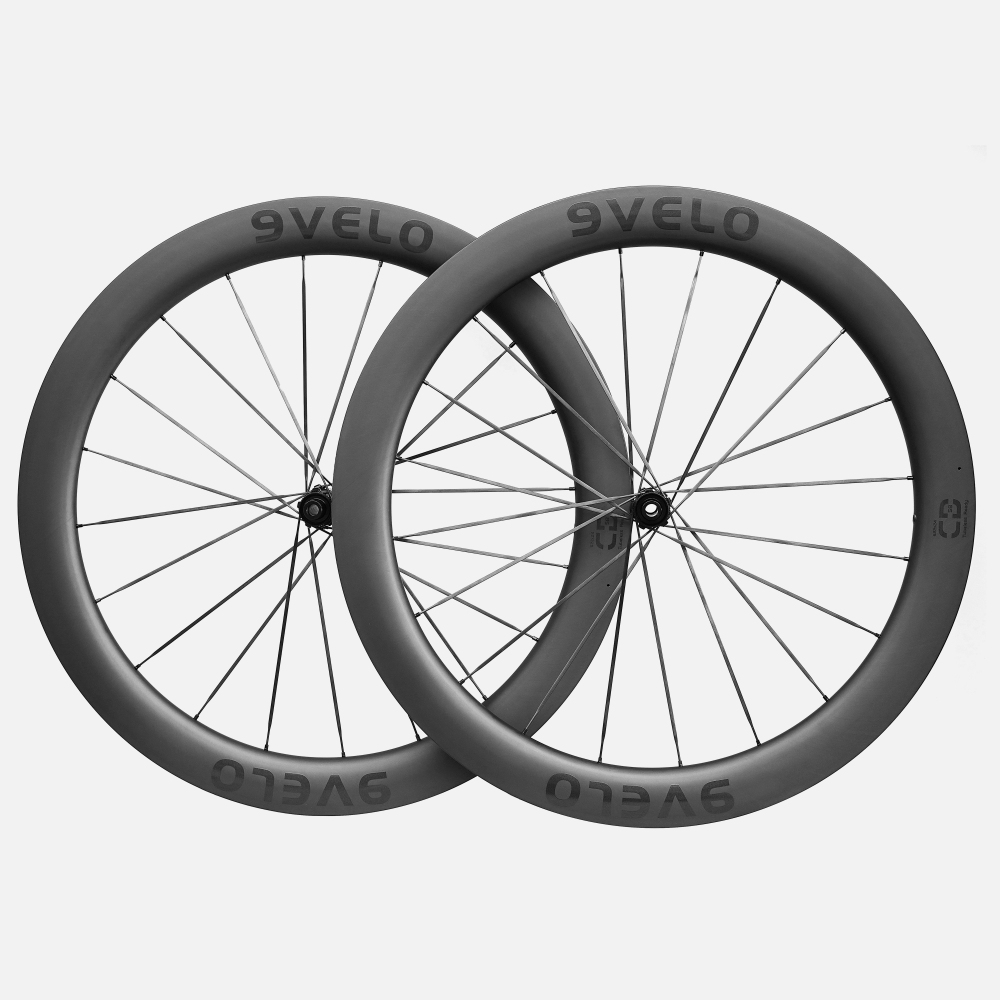

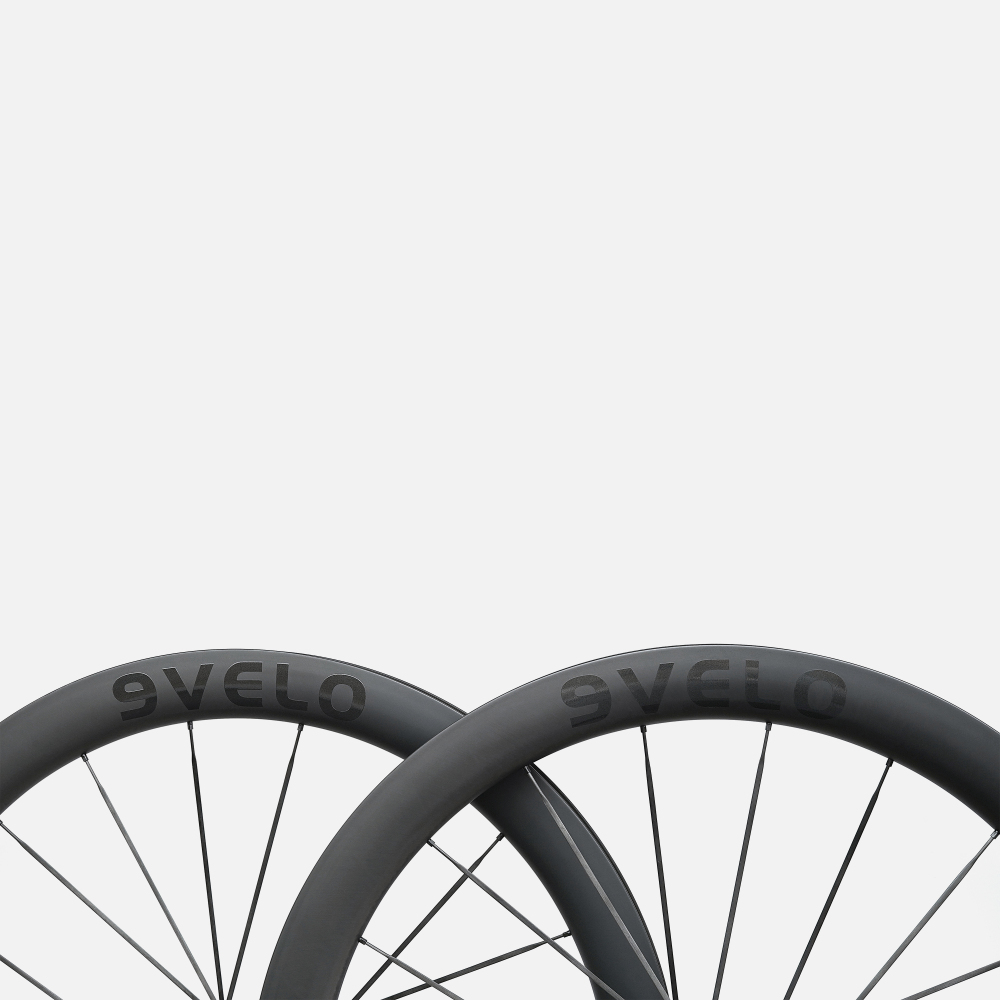

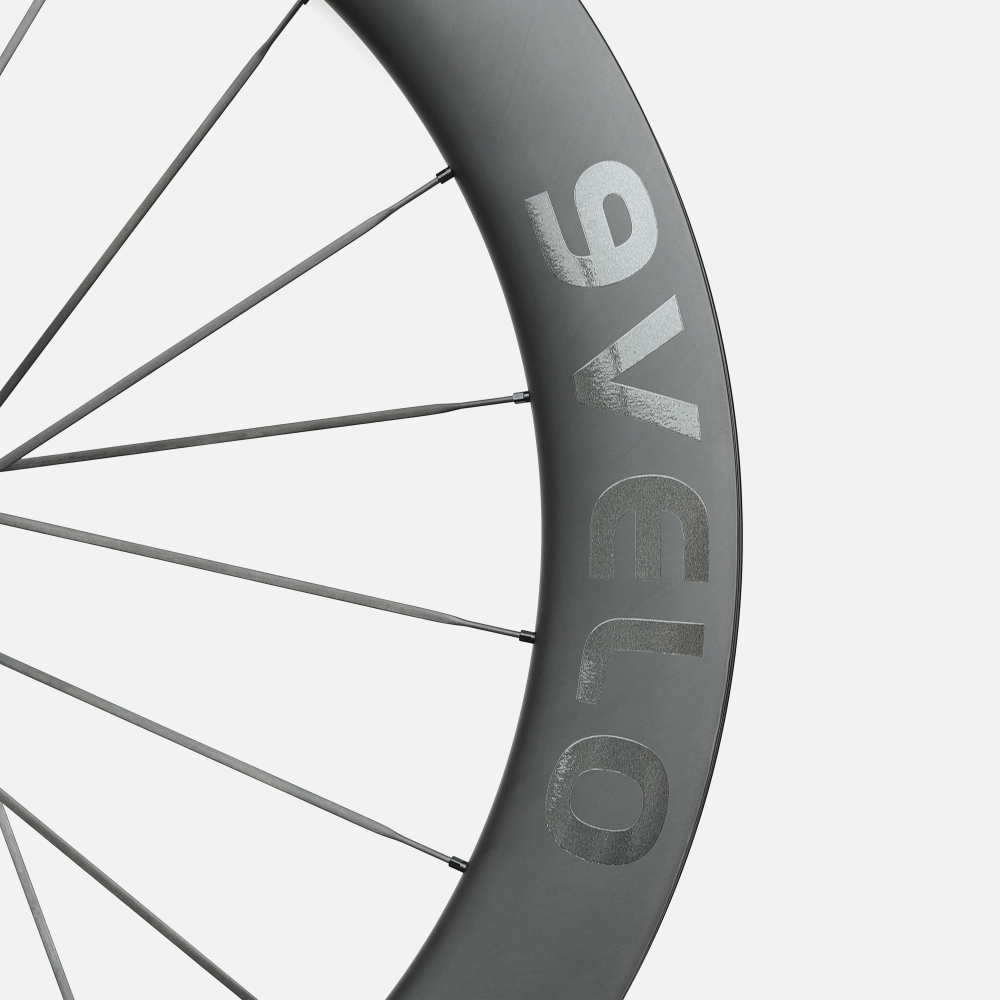

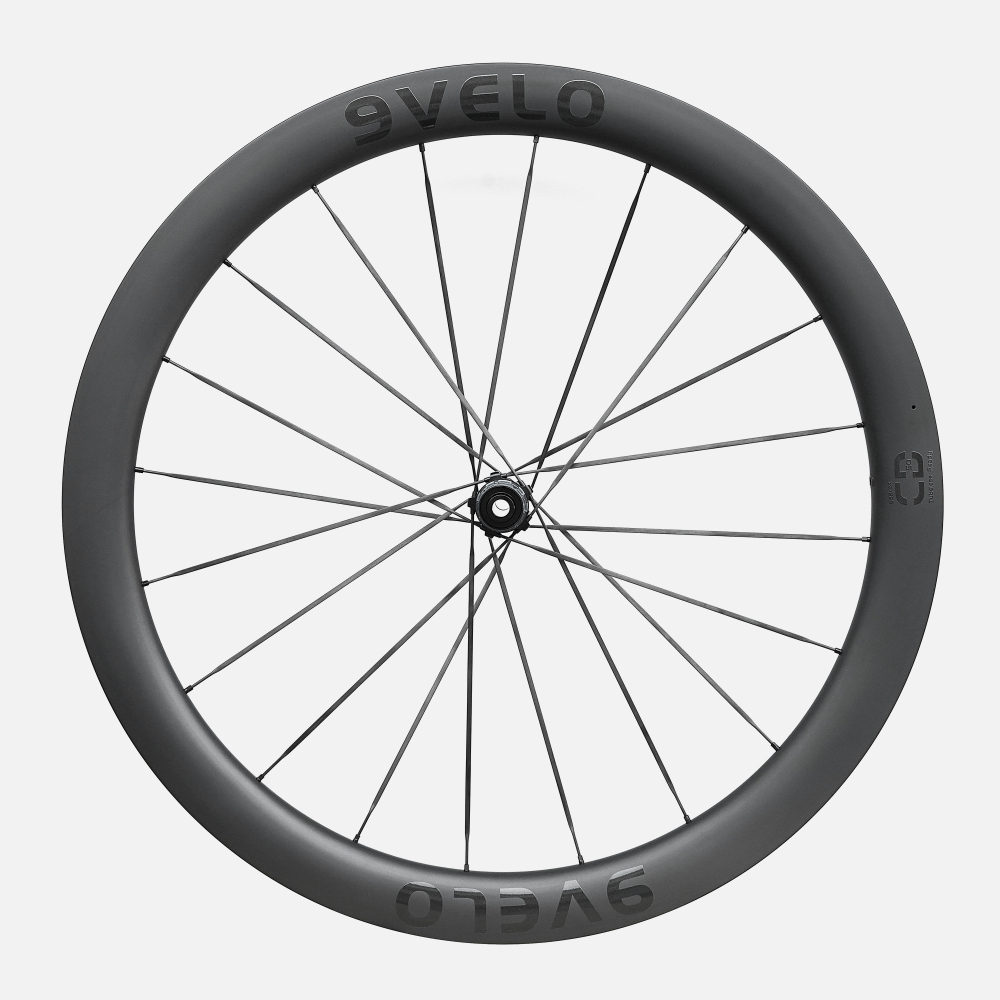

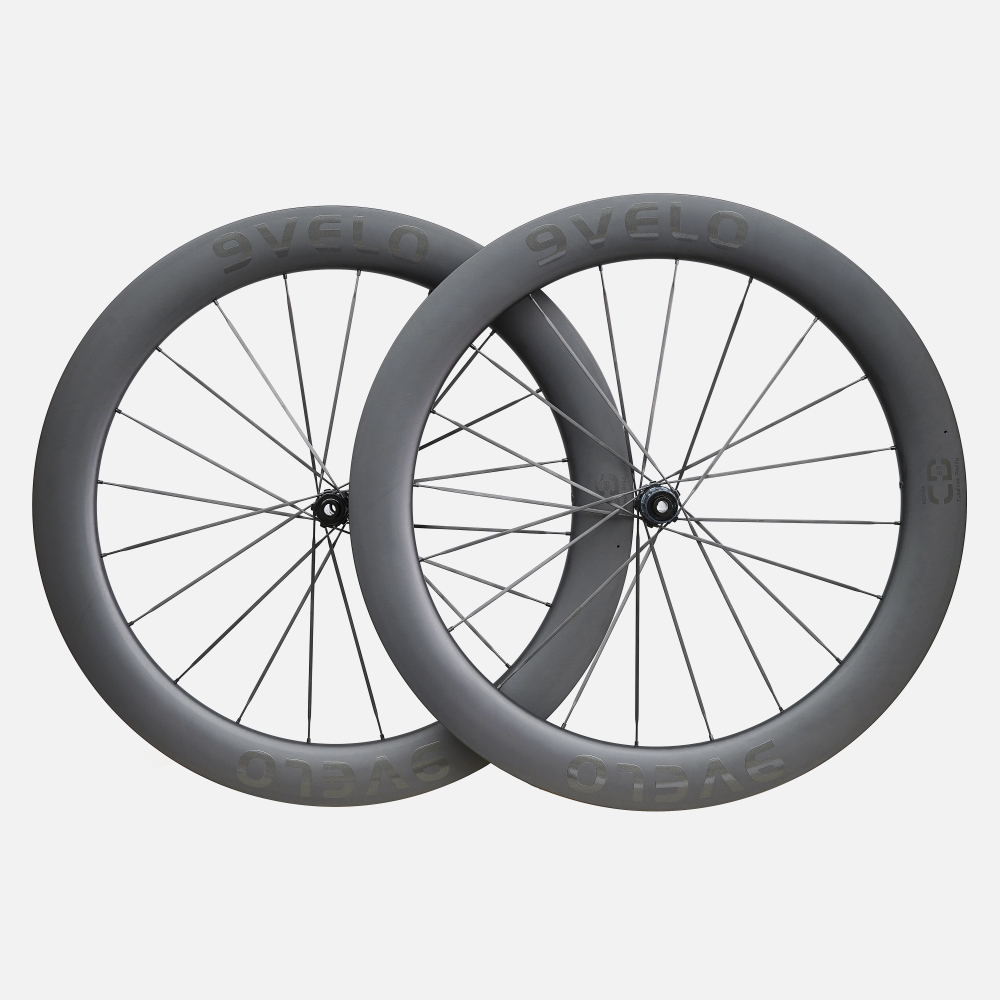

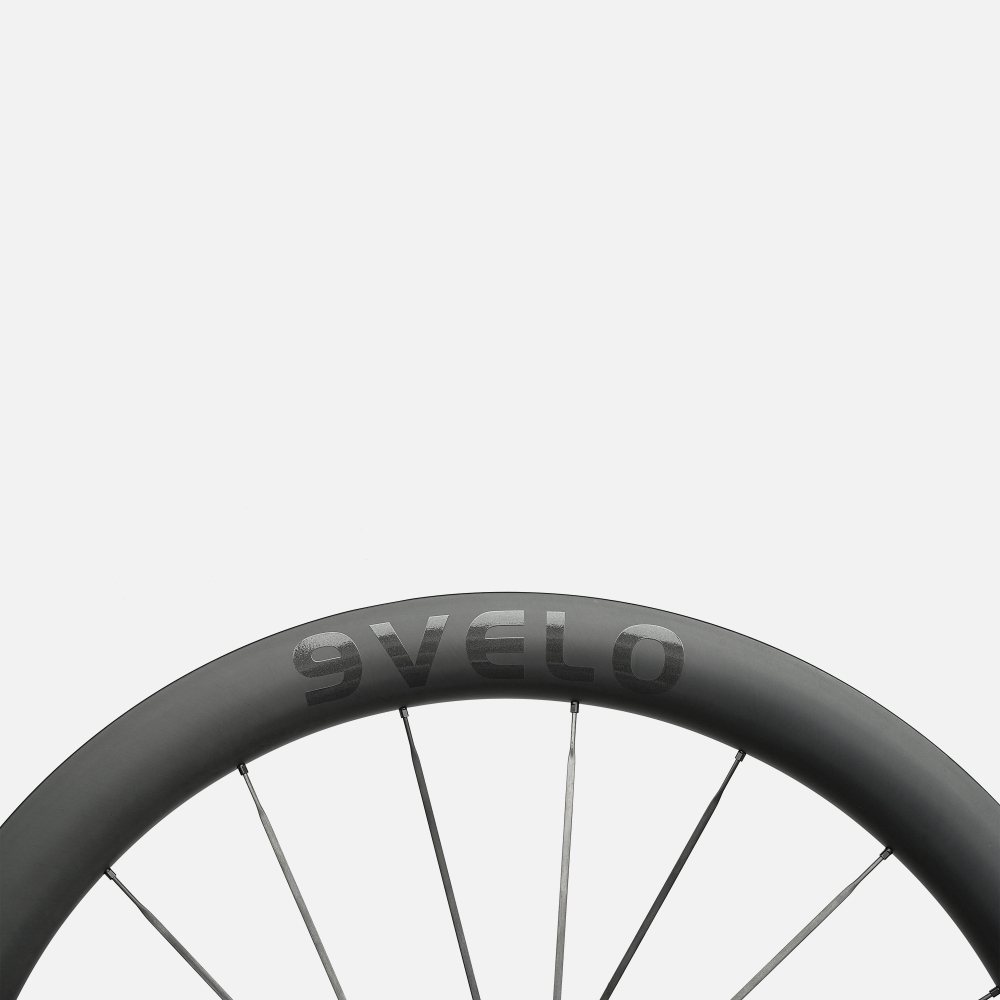

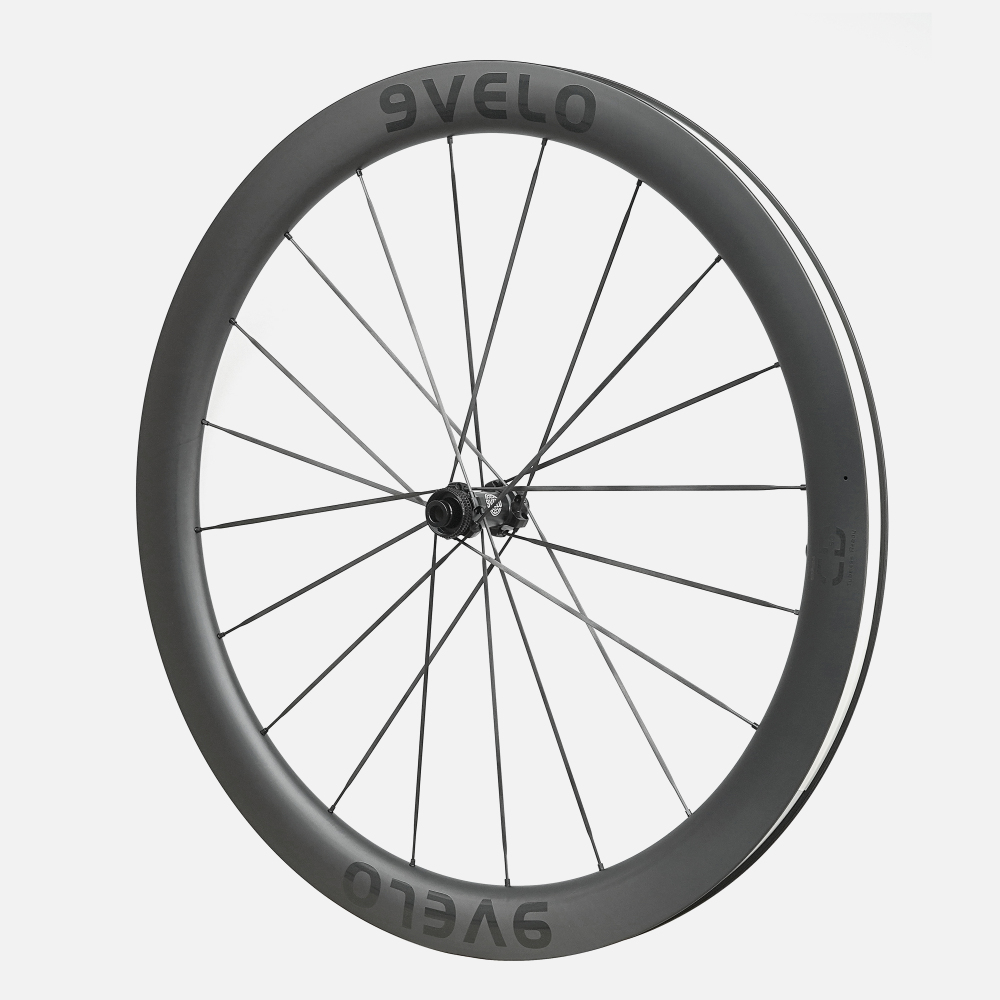

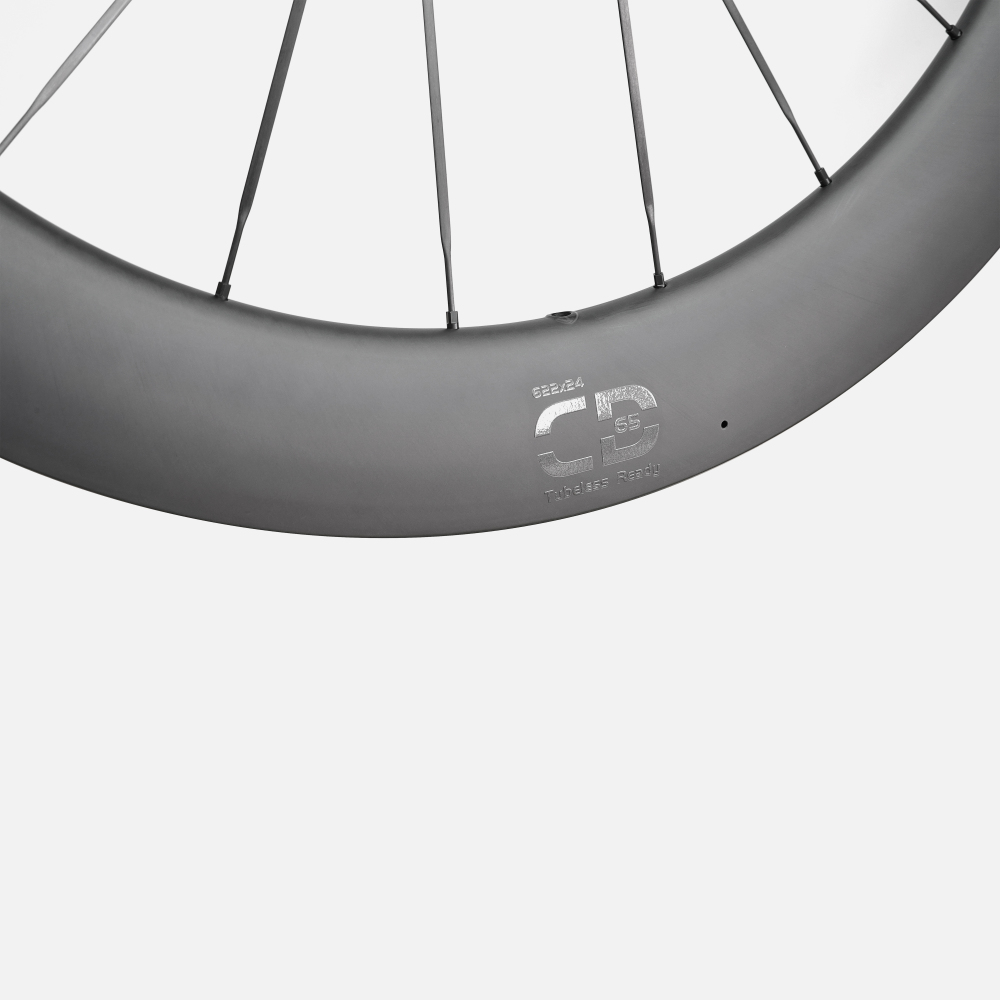

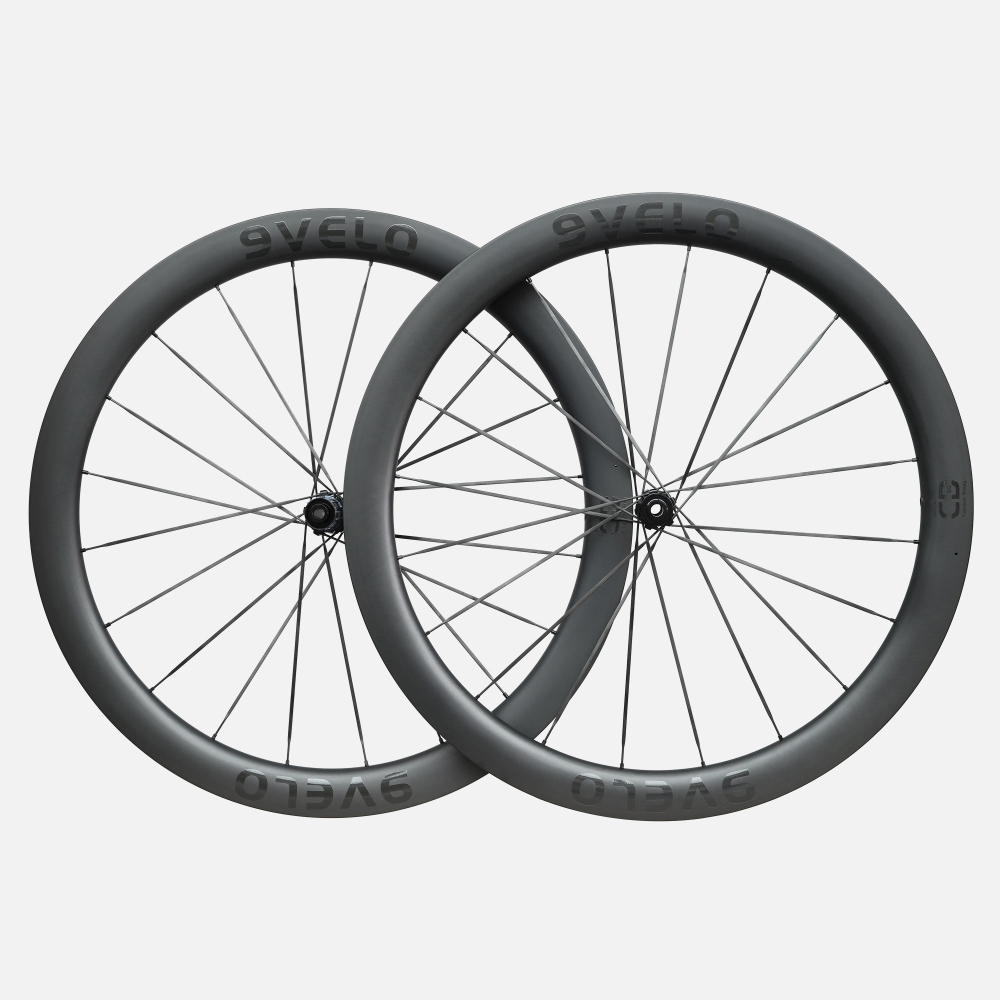

9Velo Road Disc Carbon Spoke CD Wide Series 20H/20H (24mm inner wide)

Name: 9Velo Road Disc Carbon Spoke CD Wide Series 20H/20H (24mm inner wide)
Brand: 9VELO On-line Shop
SKU: CD50 Wide / Shimano / 36T / Alloy / Steel Bearings
Price: 1289 USD
Availability: InStock
Rating: 4.9 (7 reviews)

SKU: CD50 Wide / Shimano / 36T / Alloy / Steel Bearings

"Wider, and lighter. 24mm internal wide performance carbon spoke CD Wide wheels launched."

The 24mm internal wide, 50mm deep CD50 Wide wheelset is at just 1225 grams, which is the weight you usually see from shallow climbing focused wheels. Ultralight and stiff CD50 Wide helps you climb, sprint, and accelerate faster without the weight penalty.

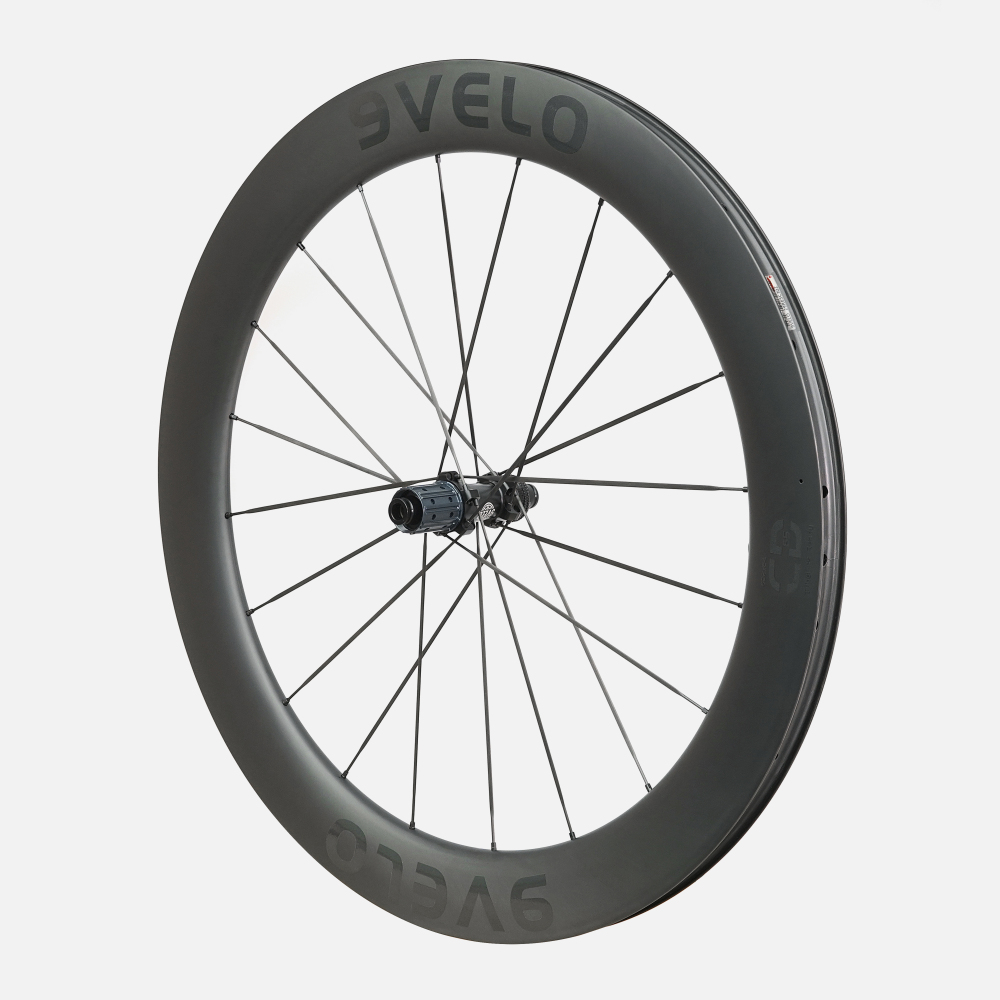

The 65mm deep CD65 Wide wheelset is at just 1428 grams, which offers fast acceleration and speed efficiency in triathlons, time trails and flat road races.
Titanium freehub body upgrade available.
45T ratchets upgrade is available, which offers quicker engagement.

*Notice: High Demand.1～3 weeks to process the order before shipping out.

Mixed front and rear rim depth is available. Please leave a message at the checkout if the mixed rim depth is required.

4.9 （7 Reviews）

$1,289.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Model:

CD50 Wide

CD58 Wide

CD65 Wide
Freehub:

Shimano 11/12s Compatible

Sram XDR

Campagnolo 11/12S

Campagnolo N3W 13S
Hub Ratchets:

36T

45T
Freehub Material:

Alloy

Titanium (+$80)
Bearing Type:

Steel Bearings

Ceramic Bearings (+$100)

Qty:

Add to Favorites (9)

1/1

Frequently Bought Together

Buy Wheelset and Spare Freehub Body Together
Buy Wheelset and Spare Freehub Body Together
Buy Wheelset and Spare End Cap Together

9Velo Road Disc Carbon Spoke CD Wide Series 20H/20H (24mm inner wide)

Choose Options

CD50 Wide, Shimano 11/12s Compatible, 36T, Alloy, Steel Bearings

$ 1,289.00

1

Titanium Freehub Body

Choose Options

PG Ratchet, XDR

$ 125.00 $160.00

Total: $ 1,414.00

Save $-1,254.00 for buying together

FEATURES

Modern Wide Rim

The wider 24mm internal wide hooked rims offer enhanced riding comfort and cross-wind stability without sacraficing performance.The hooked profile design of rims provides a larger selection of compatible tires, accommodating different riding styles and preferences. The hooked design also ensures a secure tire fit, preventing blowouts and enhancing safety.

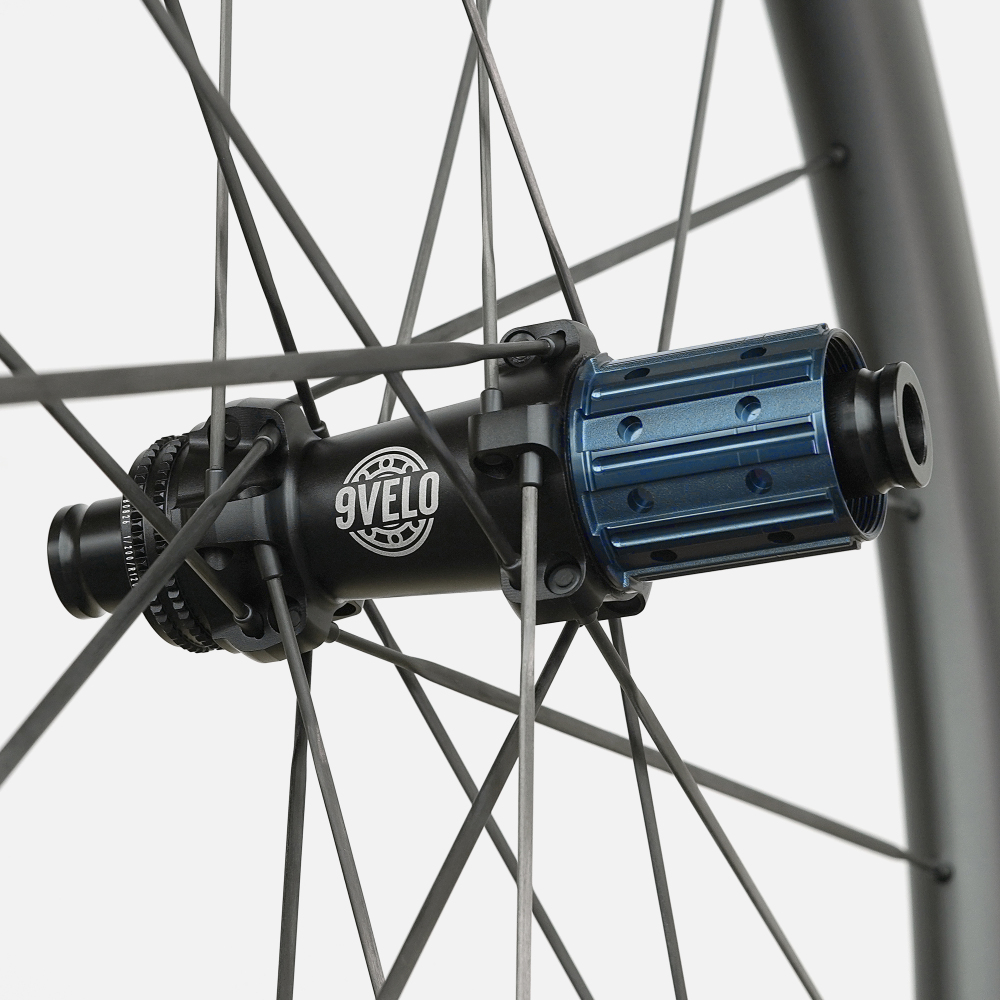

Titanium Freehub (Optional)

Titanium freehub body upgrade is available, which provides exceptional resistance to the cassette biting effect. This means you can enjoy a longer-lasting performance without worrying about the freehub body being damaged by the cassette (the titanium freehub body is 18 grams heavier than the standard alloy freehub body).

Axial Ratchet Hub

The axial ratchet hub design offers rapid power transfer and enhanced responsiveness. The high level of engagement ensures that every pedal stroke is immediately translated into forward motion, providing a quick and efficient response. The axial ratchet design also enhances the hub's durability, ensuring long-lasting performance.

Ultralight Weight

Higer-end carbon layering and high-tensile lightweight carbon spokes make ultralight wheelset weight, so that you do not need to sacrifice weight for aero benefits and stiffness. The new all-rounder 50mm deep CD50 wheelset weighs amazingly around 1225g (weight of tubeless tape not included).

Description
Maintenance Notes
Warranty
Specification

FEATURES

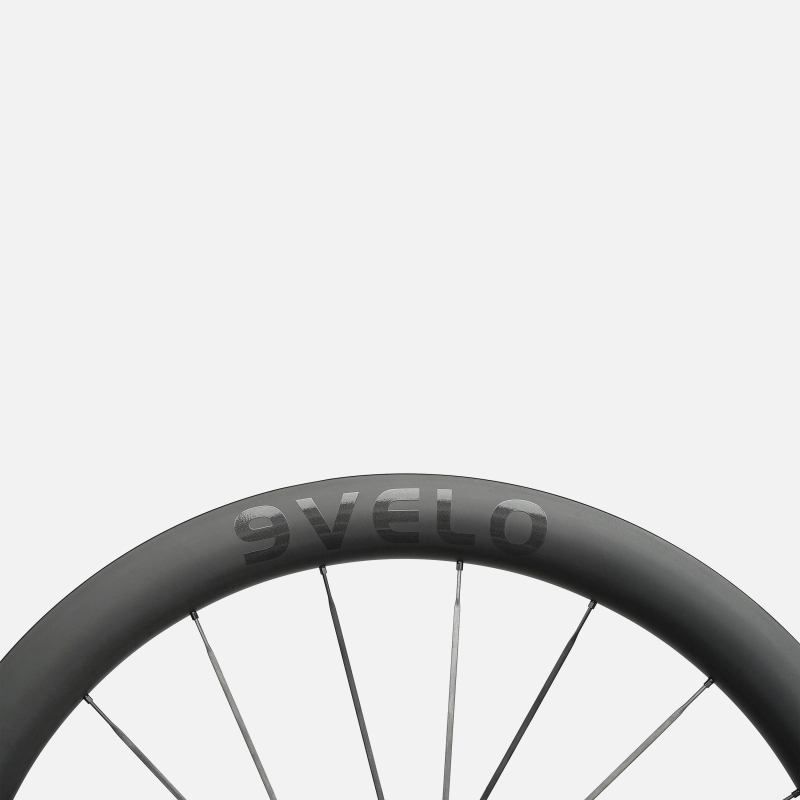

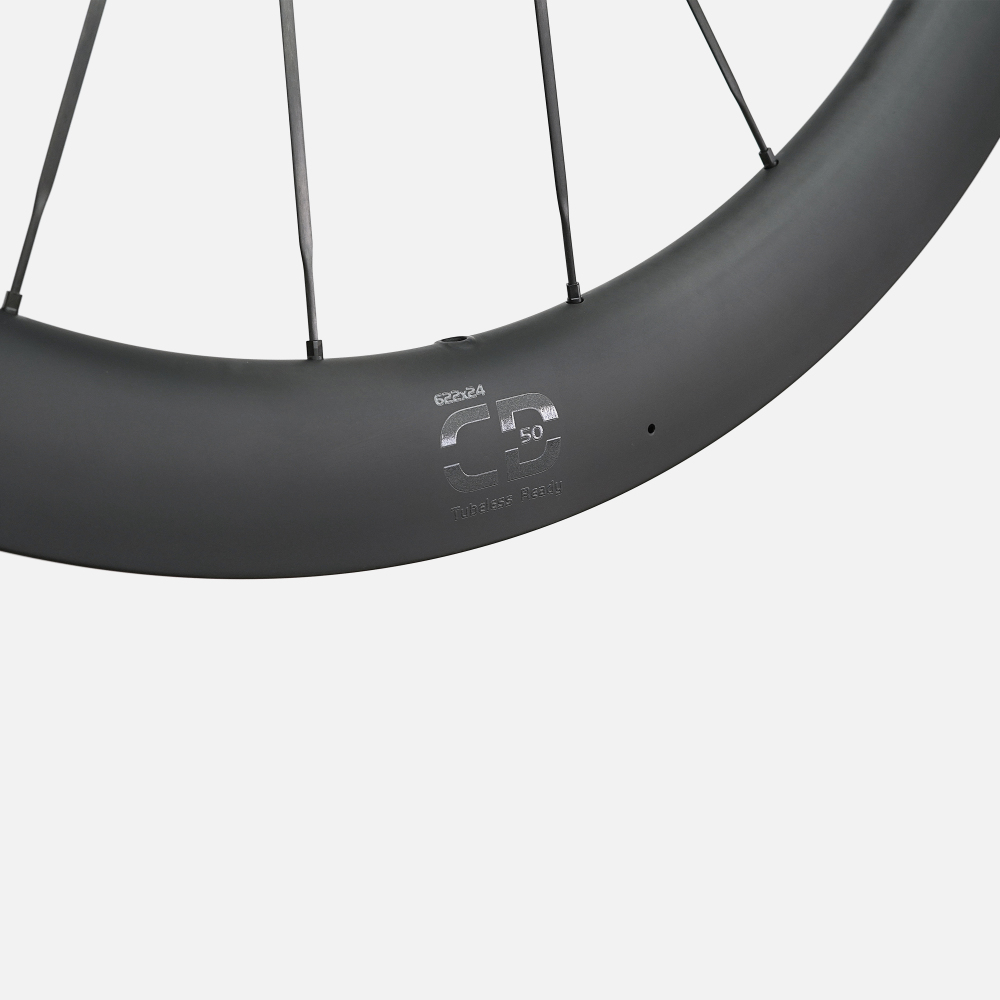

RIM

Higer-end carbon layering makes ultralight rim weight, so that you do not need to sacrifice weight for aero benefits and stiffness. The new all-rounder 50mm deep CD50 wheelset weighs amazingly around 1225g (weight of tubeless tape not included).
The new 65mm deep CD65 Wide wheelset is at just 1428 grams, which offers fast acceleration and speed efficiency in triathlons, time trails and flat road races.

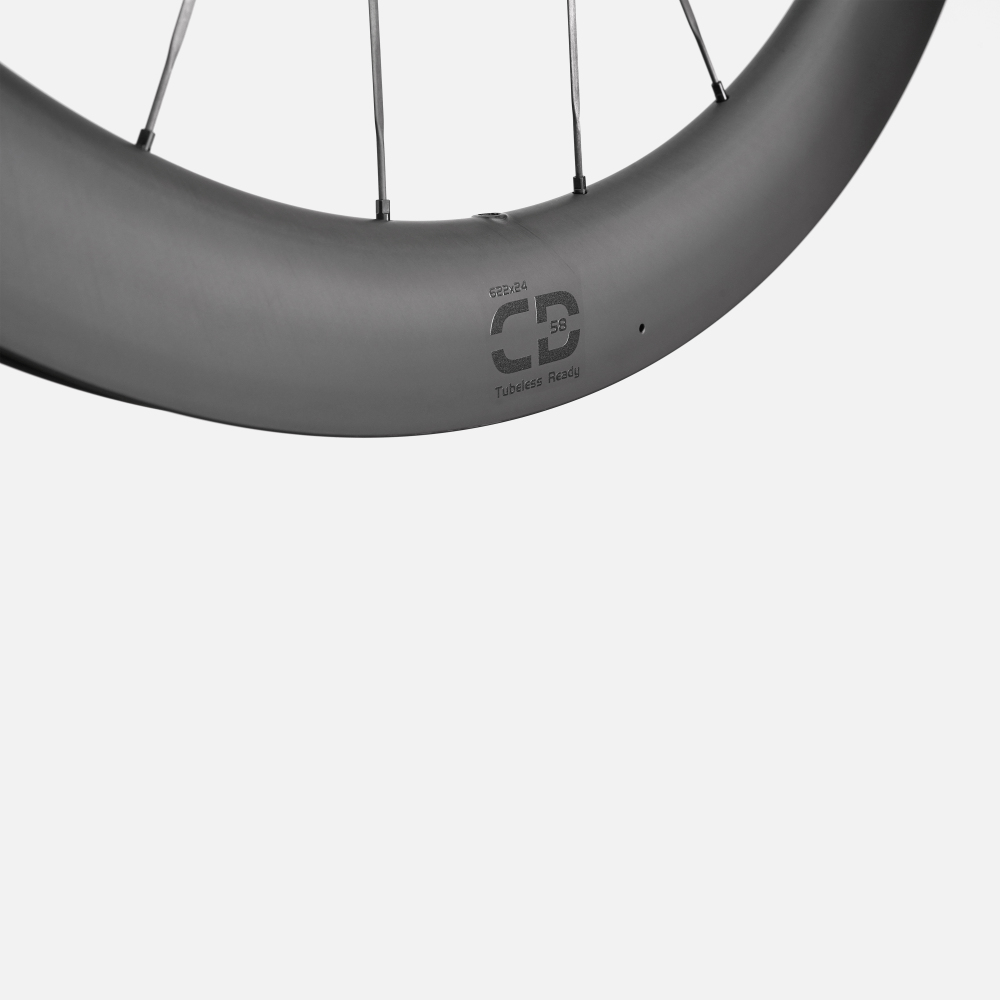

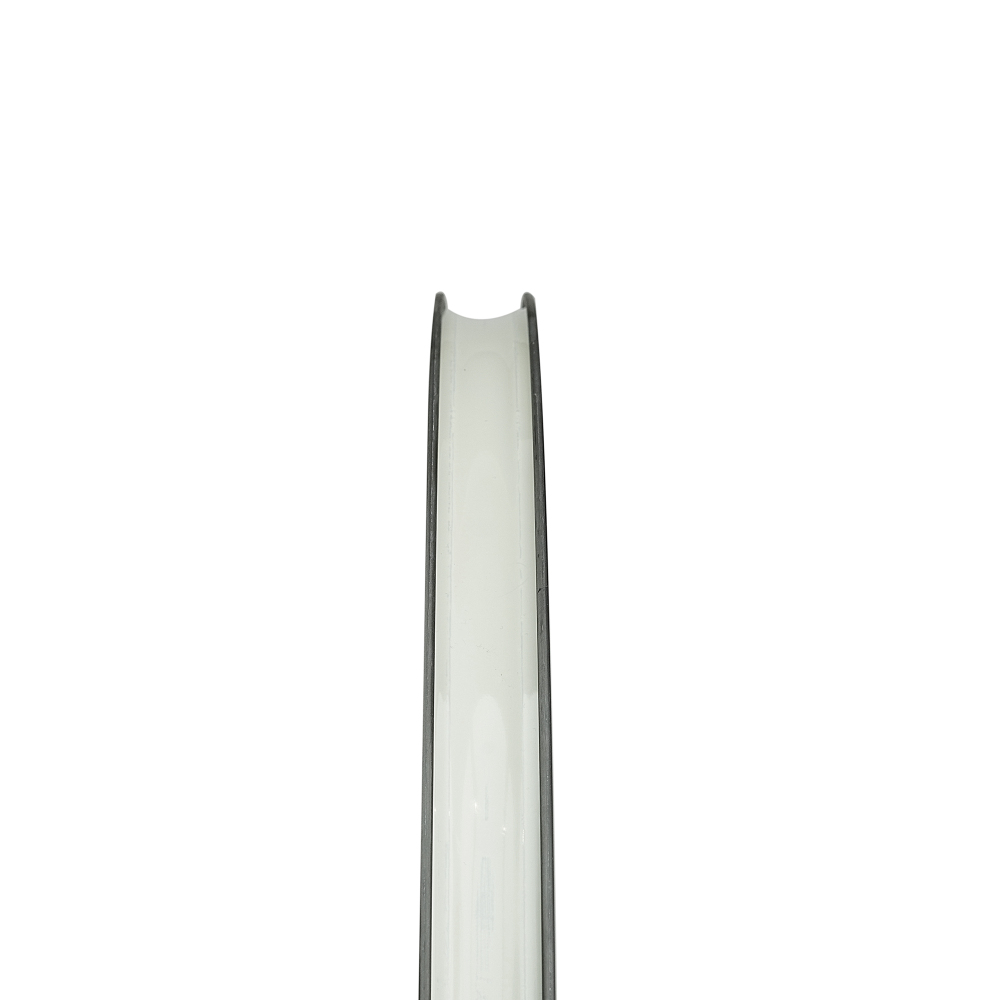

The wider 24mm internal wide hooked rims offer enhanced riding comfort and cross-wind stability.
Tubeless/clincher compatibility offers you border tire choices.
The hooked profile design of rims provides a larger selection of compatible tires, accommodating different riding styles and preferences. The hooked design also ensures a secure tire fit, preventing blowouts and enhancing safety.

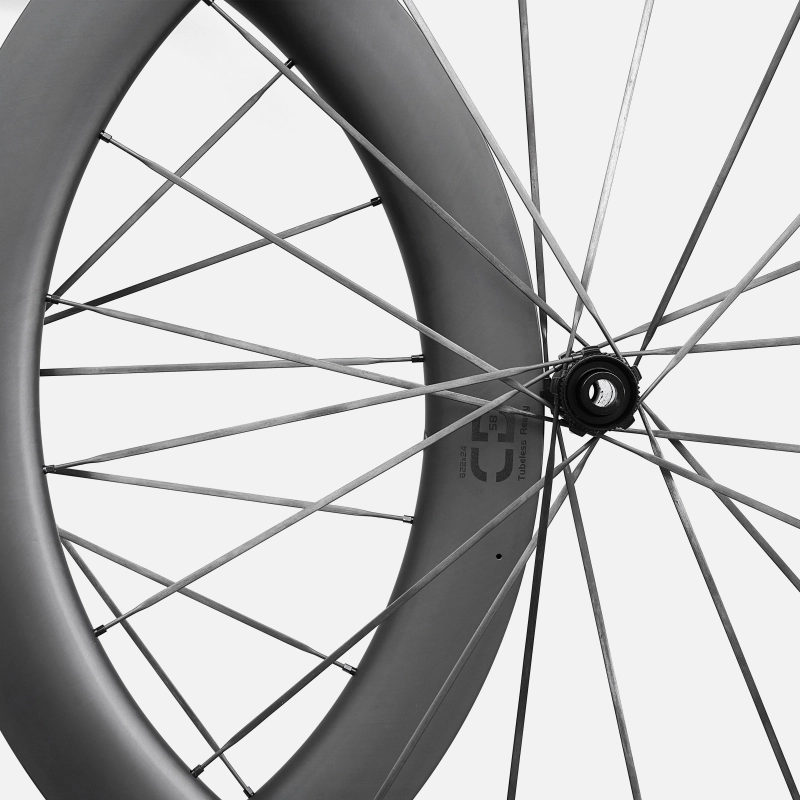

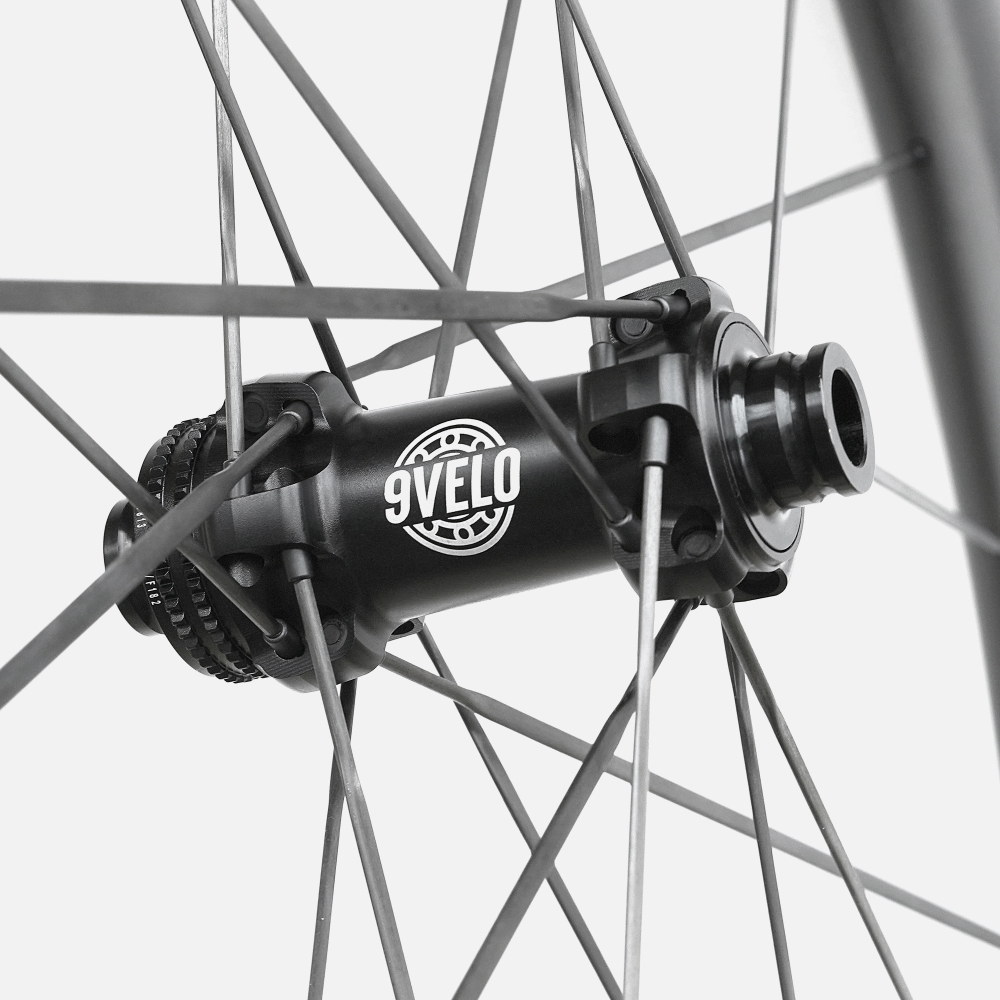

HUB

Ratchet system hubs offer a fast-engagement and efficient wheel for a smooth riding experience, which is beneficial for instant speed acceleration in the race and riding engaging various speeds and technical cornering.
High-precision hub axle is hard anodized to add stiffness and reached a tolerance within 0.003mm.
Lightweight freehub body equipped.
Designed with user-friendly maintenance in mind. the hubs require no specialized tools for servicing. This makes upkeep simple and straightforward, allowing you to keep your wheelset in top condition with minimal effort. The easy-to-service design also ensures that you can perform routine maintenance and repairs quickly, minimizing downtime and keeping you on the road.
Hubs provide convenient and easy freehub body exchange between different groupset systems and no-tool needed maintenance.
Titanium freehub body upgrade is available, which provides exceptional resistance to the cassette biting effect. This means you can enjoy a longer-lasting performance without worrying about the freehub body being damaged by the cassette (the titanium freehub body is 18 grams heavier than the standard alloy freehub body).

SPOKE & NIPPLE

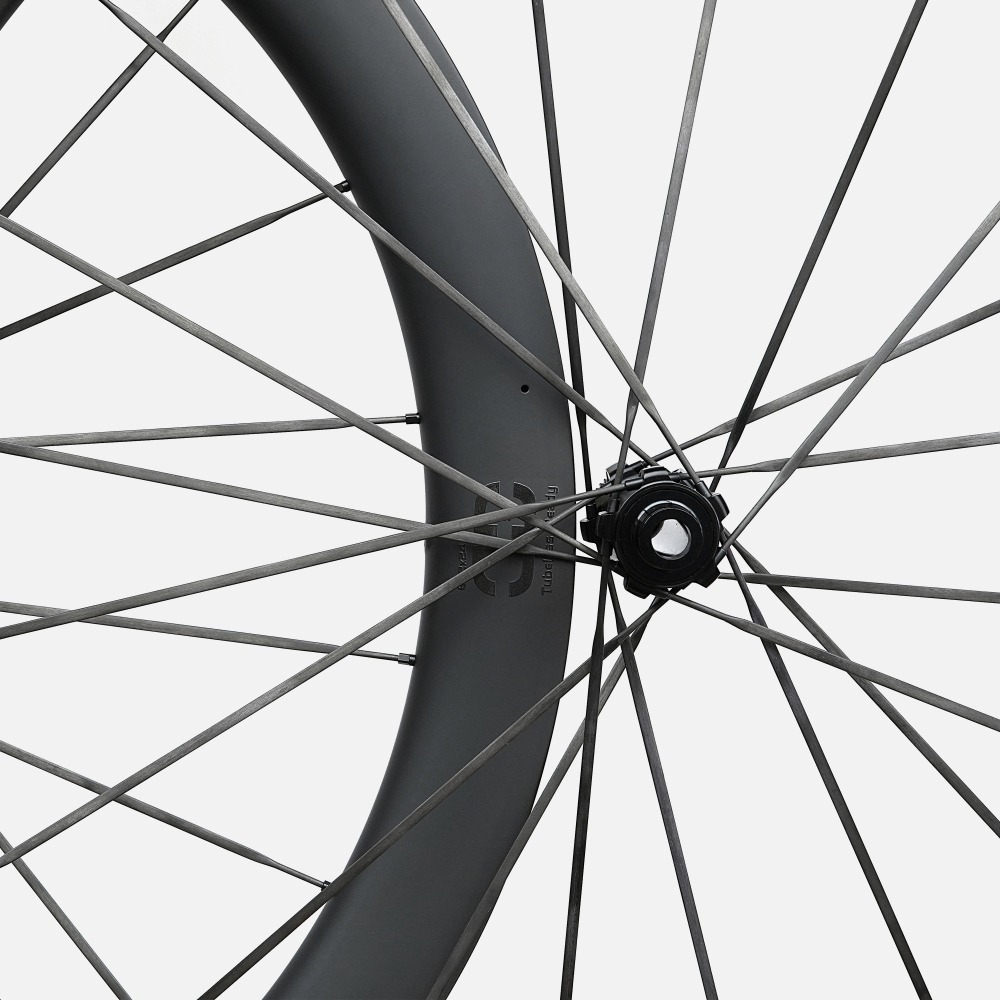

Bladed aero carbon spokes save watts for ambitious riders like you.
Carbon fiber's high tensile strength ensures that the spokes can withstand significant stress and impact without compromising performance. This material choice makes CD wheelset suitable for the most demanding racing conditions, from aggressive sprints to rolling terrain.
With stiffer and lighter carbon spokes, CD Series wheelsets can reduce the spoke hole count, offering outstanding stiffness while making no compromise on the weight.

SPECIFICATIONS

Carbon Spoke Road Disc CD Wide Series (Model Year 2025)
Model	CD50 Wide	CD58 Wide	CD65 Wide
Focused Riding Scenario	Climb, All-rounder, Sprint	All-rounder, Aero, Climb, Sprint	Triathlon, Time trail, Aero
Wheel Type	700C Ultralight Carbon Spoke Wheelset
Brake Type	Disc Brake
Tire Compatibility	Tubeless/Clincher Compatible
Rim Type	Hooked
Rim Bed	Holes Drilled
Rim Finish	UD Matte
Rim Decals	Gray Logo
Rim Outer Width	30mm
Rim Inner Width	24mm
Rim Depth	50mm	58mm	65mm
Tire Size Range	700x28c - 700x47c
Spoke Hole Count	20H/20H
Spoke	Carbon Spoke, 1:1 pattern
Nipple	Alloy
Hub	9Velo T17 Lightweight Carbon-Spoke Hub, Straight Pull (PG Ratchet System, 36 Teeth), Center Lock, 12100/12142
Freehub	Shimano Road HG/Sram XDR/Campagnolo N3W
Bearing	Steel bearings, Front: 26803, Rear: 215267, 2*6802
System Weight Limit	120kg/265lbs
Weight (Front + Rear)*	1225g*	1323g*	1428g*

*Weighted with alloy Shimano freehub, tubeless tape weight not included, ±30g
*The titanium freehub is 18 grams heavier than the alloy freehub.
*Specs are subject to change without notice.

IN THE BOX

Wheelset
Tubeless tape:pre-installed
Tubeless valves
Spare spokes
Spare nipples

WHEEL CARE TIPS

Whether it is stainless steel or aluminum alloy spokes, if they are not maintained and taken care of after some rides in the rain and dirt, they will rust, especially if you live on an island, in areas with high temperatures or in humid environments. Therefore, diligent washing (spokes and nipples), drying and maintenance are necessary and can prolong the life of the spokes and nipples.

NineVelo aims to bring you high-level wheels at affordable prices and let you cycle with fun and passion, and we know good rides are backed up with excellent product support. The following is the warranty policy that covers your wheels should you have any unexpected issues.

LIMITED 2-YEAR WARRANTY

At 9Velo we are proud to have the leading quality control process in the industry. We provide a limited 2-year warranty (consumables not included) for original owners of the 9Velo product beginning from the date of receipt of your wheel. This warranty covers all manufacturing and workmanship defects for the duration of this period.

When a product is confirmed defective and still within the warranty coverage period, it will be replaced or repaired at no replacement or repair charge. The shipping costs of the wheels are borne by us in the case that the defects happen within 6 months after the date of your receipt; and in the event of defects happening beyond 6 months after the date of the receipt, the shipping fee is borne by the customer.

LIFETIME REPAIR SUPPORT

We provide lifetime warranty service with some extra charge based on the different cases.

EXCEPTIONS TO THE 2-YEAR WARRANTY

The above warranty, or any implied warranty, does not cover:
。Normal wear and tear on parts.
。Consumable components including bearings, spokes, nipples, brake pads and brake track.
。Damage while using non-approved brake pads or tires on your product.
。Not the original owner of the wheelset.
。Modifications of the product from its original condition.
。Malicious damage and inappropriate usage.

WARRANTY PROCEDURE

If you are the original owner of 9Velo wheels and suspect any defects or malfunctions, please
。Stop using and riding on it immediately.
。Contact 9Velo and provide proof of purchase and any necessary evidence about the defects or malfunctions for the assessment.
。We will reply to you and progress as soon as possible.

RETURN POLICY

Return policy for the non-quality-related issues:
。If there are no quality issues with the product, the customer is responsible for both the return shipping fee and any import tax incurred.
。Considering the high expense of international shipping, we kindly recommend that customers carefully review the product details and specifications before payment to avoid unnecessary returns.

Return policy for quality-related issues:
。In the event of quality problems, please refer to the warranty policy above.
。We are committed to providing excellent customer service and will address any quality-related issues promptly.

ORDER CANCELLATION POLICY

Orders typically take between 3days to 4 weeks to process before shipping out.
Cancellation policy is:
。Cancellations Before Shipping: Orders can be cancelled if they have not been shipped. Please note that a transaction fee from PayPal will be incurred, which will be borne by the buyer.
。After Shipping or Custom Orders: Orders cannot be canceled if they have already been shipped or if there are customized wheels.

We kindly advise making a definitive decision before purchasing to avoid any inconvenience.

CRASH REPLACEMENT PROGRAM

We understand that crash suffers, and being not supported even suffers more. If your 9Velo wheels are damaged as a result of a crash, 9Velo Crash Replacement Program is here to help you back to cycling smoothly.

All 9Velo wheelsets are covered with the lifetime crash replacement policy. This policy can be used to obtain a discounted replacement product if non-warranty damage occurs while riding your bike.

SPECIFICATIONS

Carbon Spoke Road Disc CD Wide Series (Model Year 2025)
Model	CD50 Wide	CD58 Wide	CD65 Wide
Focused Riding Scenario	Climb, All-rounder, Sprint	All-rounder, Aero, Climb, Sprint	Triathlon, Time trail, Aero
Wheel Type	700C Ultralight Carbon Spoke Wheelset
Brake Type	Disc Brake
Tire Compatibility	Tubeless/Clincher Compatible
Rim Type	Hooked
Rim Bed	Holes Drilled
Rim Finish	UD Matte
Rim Decals	Gray Logo
Rim Outer Width	30mm
Rim Inner Width	24mm
Rim Depth	50mm	58mm	65mm
Tire Size Range	700x28c - 700x47c
Spoke Hole Count	20H/20H
Spoke	Carbon Spoke, 1:1 pattern
Nipple	Alloy
Hub	9Velo T17 Lightweight Carbon-Spoke Hub, Straight Pull (PG Ratchet System, 36 Teeth), Center Lock, 12100/12142
Freehub	Shimano Road HG/Sram XDR/Campagnolo N3W
Bearing	Steel bearings, Front: 26803, Rear: 115267, 3*6802
System Weight Limit	120kg/265lbs
Weight (Front + Rear)*	1229g*	1330g*	1428g*

*Weighted with alloy Shimano freehub, tubeless tape weight not included, ±30g
*The titanium freehub is 18 grams heavier than the alloy freehub.
*Specs are subject to change without notice.
